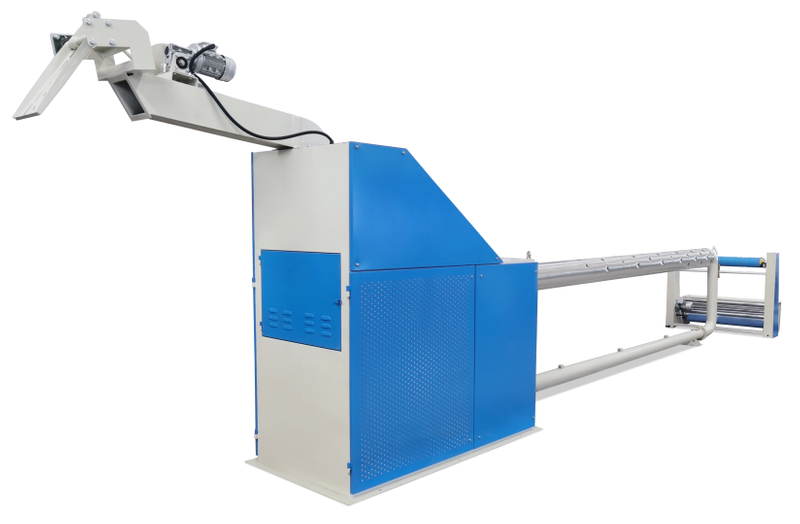

TF-B5000 Tubular fabric turning machine

It's applicable for the turning process of tubular fabric that is attached high requirements prior to dyeing and washing
Availability:
Quantity:
  • TF-B 5000

  • Honsun

technical features

1.    It's applicable for the turning process of tubular fabric that is attached high requirements prior to dyeing and washing

2.   Double-tube design ensures better airflow and impress-free fabric outlet

3.    Super long fabric tube design offers greater fabric load and higher efficiency

4.Super long fabric tube design offers greater fabric load and higher efficiency.


technical parameters:

1.      Type: Fabric turning by airflow;

2.      Max.Fabric Loading volume: 200KG;

3.      Max Turning speed: 200m/min

4.     Cloth  turning cylinder dimension: 5000mm;

5.      Power:11KW

6.     Power supply: 380V/50HZ

7.     External dimension: 8540×1020×2660mm

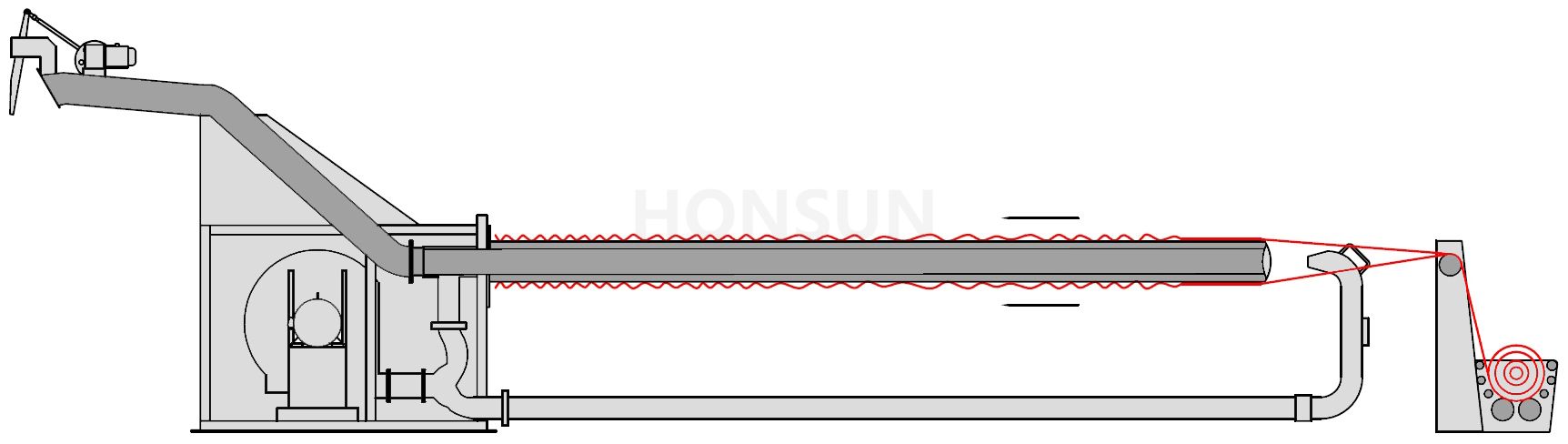

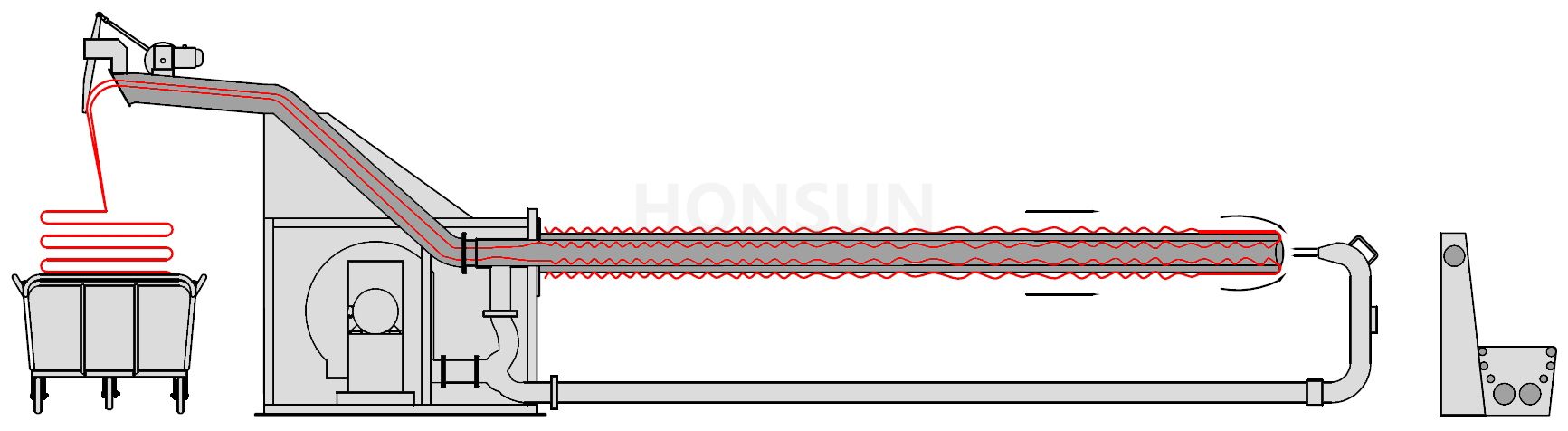

TF-B出布TF-B上布
